| REVscan - Handyscan 3D Scanners
|
|
REV up your scanning power!
Catch the REVolution in 3D scanning with the REVscan™, part of the Handyscan 3D™ line of self-positioning scanners by Creaform.

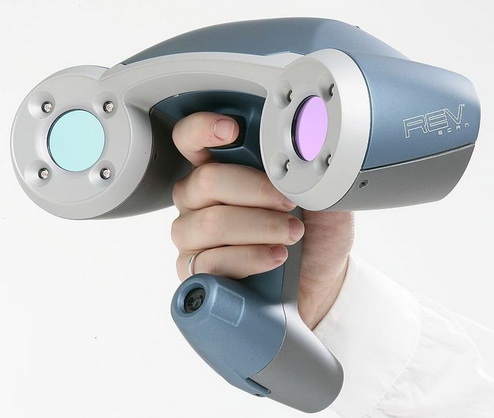

Here is the REVscan™, the innovative self-positioning handheld scanner that has completely changed the way reverse engineering, design, shape acquisition and 3D inspection are done. Powerful, accurate and truly portable, the REVscan definitively maintains its technological edge.
Applications
Reverse Engineering & Styling, Design & Analysis:
The REVscan laser scanner allows companies to meet their requirements for creating or recreating new designs from existing and sometimes obsolete products or components, or even old parts that may have been developed without the use of CAD. The REVscan has proven particularly efficient at accelerating and facilitating the product design, creation and prototype analysis processes, while reducing related costs. The REVscan turns out to be very powerful for tasks such as:
Surface reconstruction
Class A surfacing
3D modeling
Mechanical design
Clay model digitizing
Tooling & jigs development
Maintenance, repair and overhaul (MRO)
Finite Element Analysis (FEA)
Inspection: Scanning and measuring of objects of any size, in various environments. Non contact, first-article and supplier quality inspection, colorimetric reports and overall conformity assessment of parts.
Medical Applications: Non contact, non invasive process. Generation of 3D digital files from body parts or existing objects, orthotics and prosthetics, aesthetics and plastic surgery, body part measurements and reproduction, diagnosis and follow-ups.
Other applications include 3D scanning of existing objects, 3D archiving, complex shape acquisition, measurements archiving, damage assessment, digital models and mock-ups, packaging design and rapid prototyping.
Technical Specifications
Weight 980 grams (2.1 lb)
Dimensions 160 x 260 x 210 mm (6.25 x 10.2 x 8.2 in)
Measurements 18,000 measures/s
Laser Class II (eye-safe)
Resolution in z axis 0.1 mm (0.004 in)
Accuracy Up to 50 µm (0.002 in)
Volumetric Accuracy 20µm + 0.2 L /1000 |
|
